HeavyDuty Universal Joint Puller Press Removal U-Joint Tool Automotive Class 1-3

Description:
Compatibility:
Fits U joints with bearing cups 1.0" to 1.25". Great for cars, light-duty trucks, and farm machinery.

Supeior Quality:

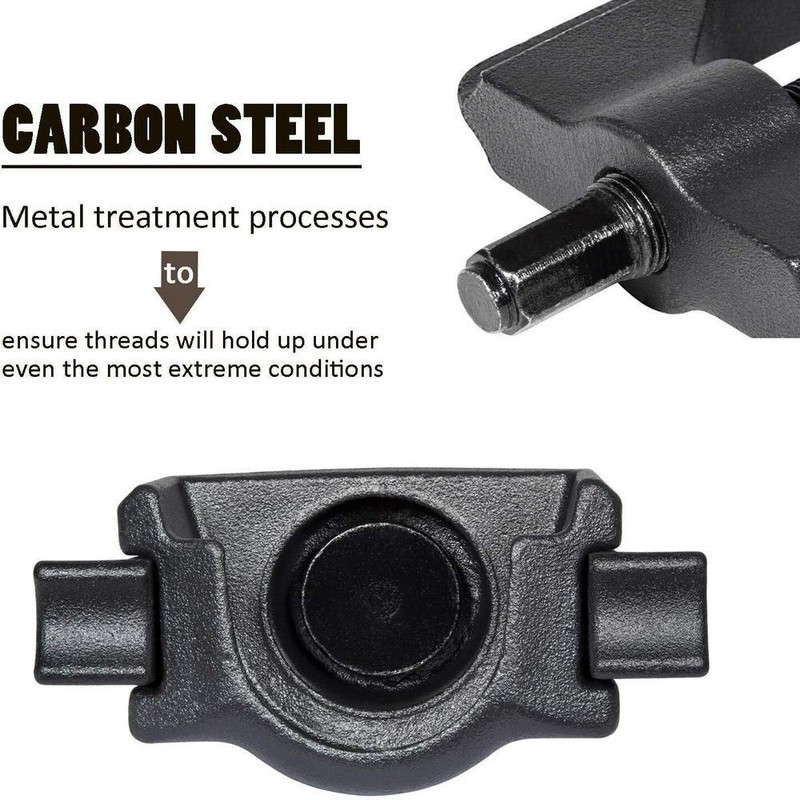

Manufactured from heavy duty carbon steel which has processed metal treatment to ensure threads will hold up under even the most extreme conditions.

Function:
Specifically designed to removes sealed u-joint cups quickly and easily. This "original" U-Joint Puller provides ultimate brute strength for disassembling.

Nice Performance:
Does not damage the driveshaft, yokes, joints, or bearing cups. Eliminates dangerous vice and socket, or hammering methods.

Application

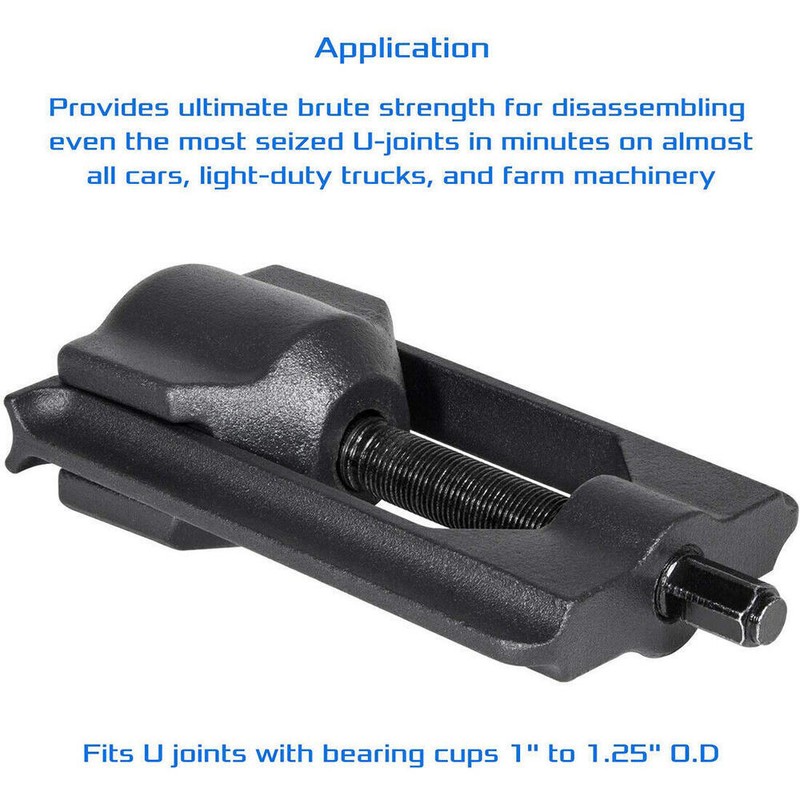

U-Joints with bearing cups 1″ to 1.25″ O.D.

Feature:
Manufactured from high-grade materials.
Eliminates dangerous vice and socket or hammering methods.
Reduces the risk of damage to driveshaft, yokes, joints or bearing cups.
Can be used on aluminum driveshafts.
One piece unit – No bolts, cables, or assembly required.

Stay Alert!
Watch what you are doing and use common sense when operating this tool.
Do not operate tool while under the influence of drugs alcohol, or medication.
Always use safety equipment to prevent injuries.
Approve face and eye protection must always be worn by the operator, as well as others in the work area.
Keep your work area clean and well lit.

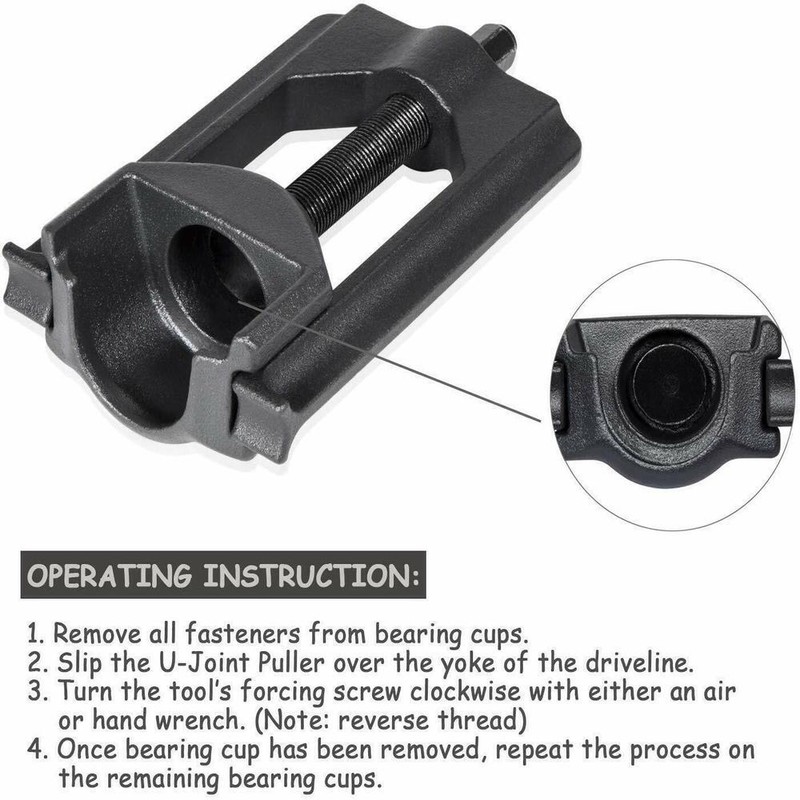

Operating Instruction:
1. Remove all fasteners from bearing cups.

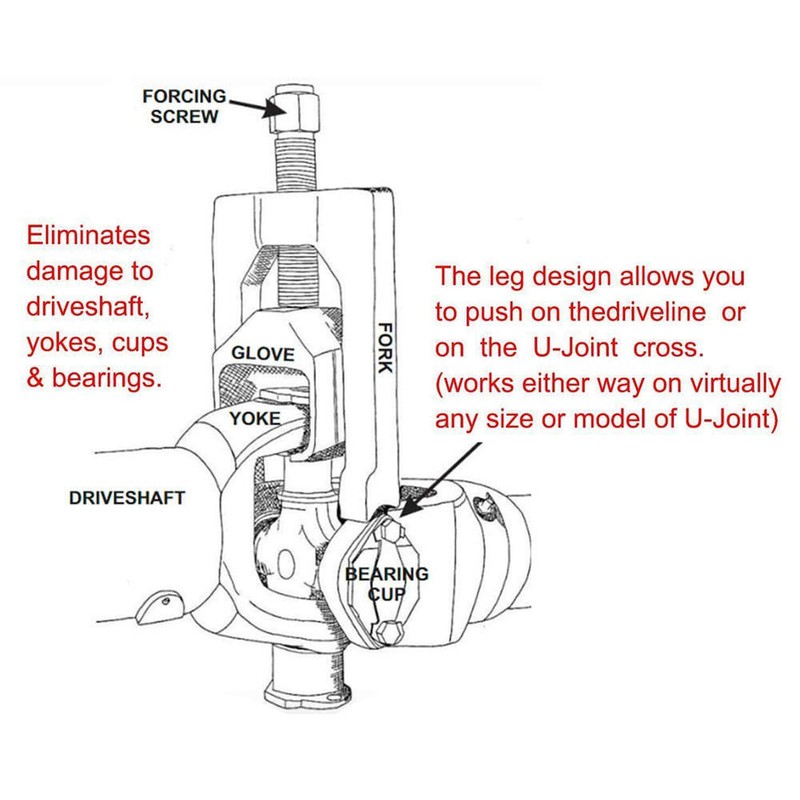

2. Slip the U-Joint Puller over the yoke of the driveline.
3. Turn the tool’s forcing screw clockwise with either an air or hand wrench. (Note: reverse thread)
4. Once bearing cup has been removed, repeat the process on the remaining bearing cups.
The 10105 U-Joint Puller may be used with up to a 1/2-inch impact wrench without voiding warranty.
Package Details:
1Pcs Universal Joint Puller Tool (Black)
