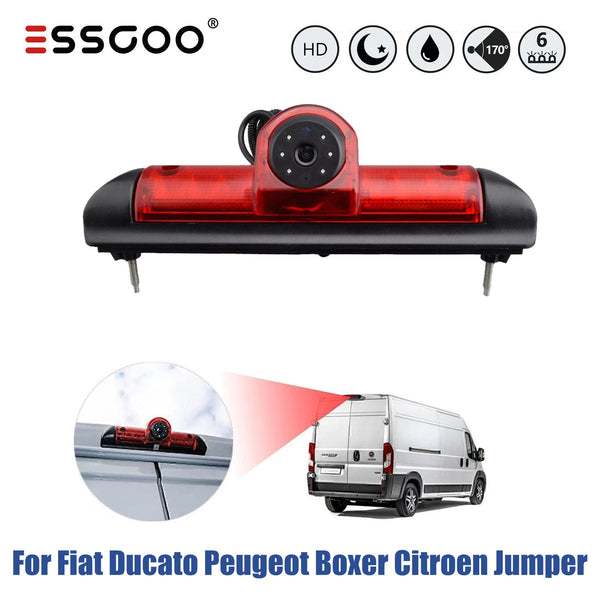

Vehicle-specific rear-view camera brake lamp for:
Suitable for Citroen Jumper 2006-2015
Suitable for Fiat Ducato 2006-2015
Suitable for Peugeot Boxer 2006-2015
1.Easy installation, the third brake light on the roof edge is replaced
2. Good night vision thanks to 10x strong infrared diode sensors
3. 8m special cable
Camera connection: 4-pin with anti-vibration screw thread
Connection monitor: RCA plug
4. Continuous operation and reverse gear shifting possible
5. Color camera
6. IP68 waterproof!
7. Distance line: optional

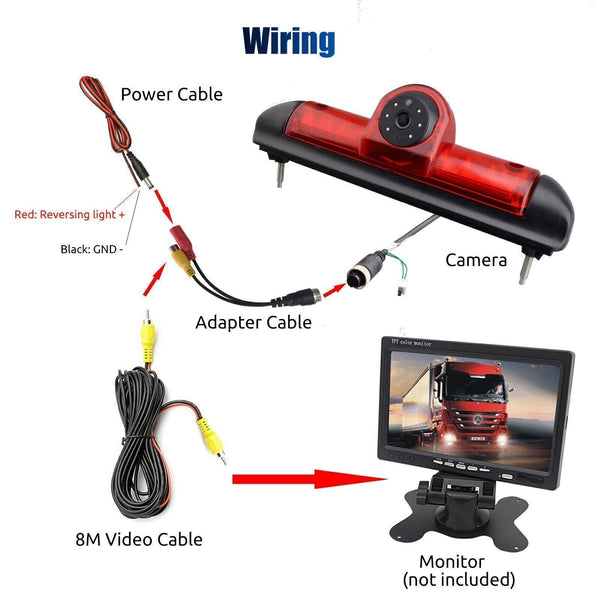

Installation instructions:
Remove original brake light
Reinstall camera with brake light
Connect the power supply cable to the reversing lamp
Installing video cable in the vehicle to the monitor
Technical specifications:
Camera: reversing camera
Image sensor: 1/4 7440H CMOS
Resolution: 733*493 pixels
TV Lines: 600TVL
Detection angle: 170°
Material camera body: plastic
Minimum illumination: 0.1 lux
Video standard: PAL/NTSC
Voltage: 12V
Ambient temperature range: -20°C ~ +70°C
Power Consumption: <2W
Night vision: 6 infrared diodes with brightness sensor
IP68 waterproof
Distance lines: optional
including 8m cable

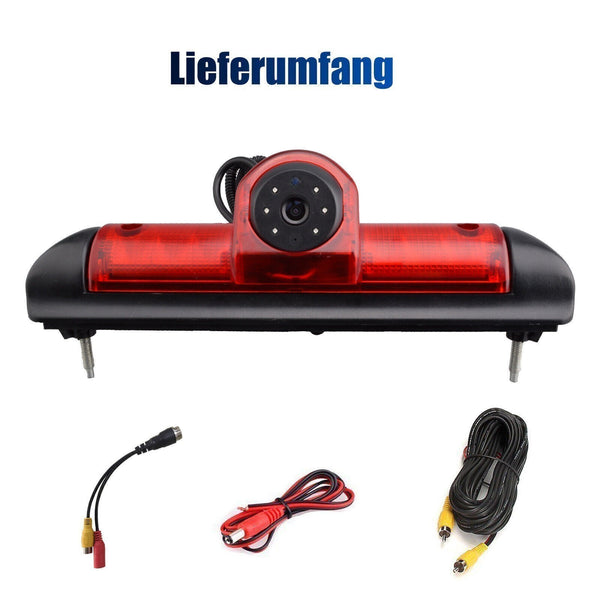

Item Included:
1x Rear view camera
1x 8m cable
1x adapter cable
1x power cable
